The frame weighs 1100 g and comes in five sizes: XS, S, M, L, XL. The geometries derive from the mountain bike: the frame triangle develops horizontally, the reach is quite pronounced. This solutions make it possible to use a shorter handlebar stem that works in synergy with the open steering angle (70°).
A transformation that translates into better handling and control on the more demanding trails with a fully loaded bike.
READY FOR CHANGE
The frame has been designed to fit a fork with extra-length blades. This configuration makes it easier to install a suspension fork (40 mm max travel compatible with the 1"1/4 - 1"1/2 conical headset series) without changing the frame overall geometries.
The opening on the fork's right stem allows the passage of the dynamo hub cable, if used. Even the 27.2 mm seatpost can be replaced with a dropper post.
FIXING AND LOAD POINTS
The front and back carriers load the weight of the bags onto the thru axles that pass through the frame and fork. This was done to reduce any structural stress on the Adlar.
Other fixing points offer stability and the option of installing a third bottle holder or a tool bag under the down tube, in addition to a top tube bag.
INTEGRATED MUDGUARD
All configurations feature exclusively single-drivetrain transmission. This choice has made it possible to free the vertical tube from the derailleur support. In this area the forms have been squeezed to recreate a sort of small integrated mudguard.
TYRE CLEARANCE
The generous tyre clearance is made to accommodate any 52 mm (52-622) gravel tyre up to mountainbike tyres measuring 29 x 2.00".

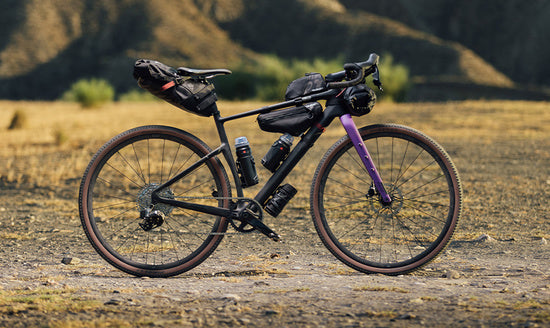

BIKEPACKING KIT
The accessories kit is completed with the mudguards (sold separately) and a set of 4 quick-hook bags made in partnership with Miss Grape.
SSpesifikasjoner:
- Drivetrain SHIMANO GRX 1X12
- Wheelset MICHE GRAFF XL
- Frame ADLAR - CARBON MONOCOQUE NHU-MOD
- Fork ADLAR - CARBON MONOCOQUE NHU-MOD

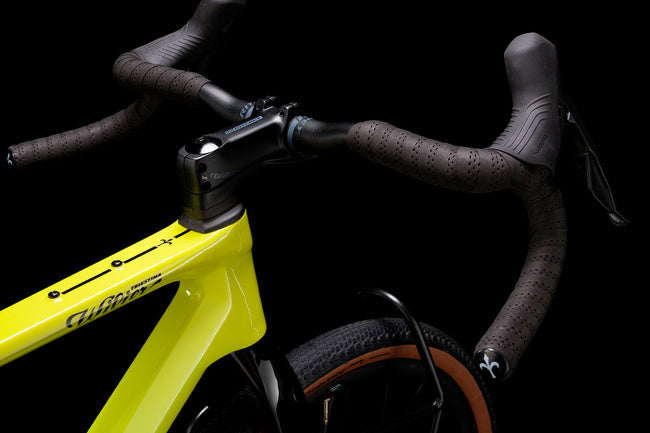

- Handlebar RITCHEY COMP CORRALITOS
- Stem WILIER STEMMA S
- Headset WILIER CUSTOM SUPERSLIM BEARING 1"1/4 - 1"1/2
- Shifters SHIMANO GRX 1X12 RX-6100
- Brakes SHIMANO GRX BR-RX600
- Rotors SHIMANO CENTER LOCK SM-RT70 160 MM / 160 MM
- Rear derailleur SHIMANO GRX RD-RX822 GS
- Crankset SHIMANO GRX FC-RX610-1 40T
- BB Shell SHIMANO BB-RS500-PB R+L PRESS FIT
- Cassette SHIMANO CS-M7100-12 10-51T
- Chain SHIMANO DEORE CN-M6100 12S
- Tires PIRELLI CINTURATO ADVENTURE 700X45
- Saddle WILIER SADDLE ROAD TITAN RAIL M 245-144
- Seatmast RITCHEY COMP 2-BOLT V2 ALU
